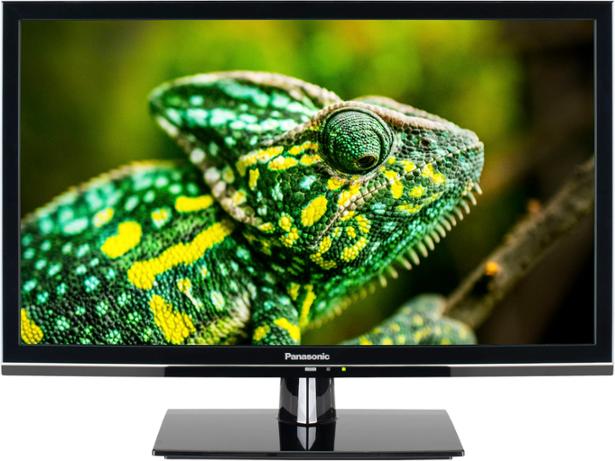

معرفی و توضیح در مورد تلویزیون خانگی پاناسونیکتلویزیون خانگی پاناسونیکTX-24FS500B
Display
ایران پاناسونیک
| Panel | LED LCD | ||
|---|---|---|---|
| Bright Panel | — | ||
| Screen Resolution | 1,366 (W) x 768 (H) | ||
| Panel Drive | 600 Hz BMR | ||
| Picture Mode | Dynamic/Normal/Cinema/True Cinema/Custom/Sport/Game | ||
| Ultra HD Premium*1 | — | ||
| HDR Brightness Enhancer (auto/manual) | Y | ||
| Contrast | High Contrast | ||
| Colour Space | — | ||
| HCX Processor | — | ||
| Local Dimming | — | ||
| Adaptive Backlight Dimming | Adaptive Backlight Dimming | ||
| THX Certified Display*2 | — | ||
| isf Mode | — | ||
| Sound Quality | Surround | Cinema Suround | |
| Speaker Output | 6 W (3 W x 2) | ||
| Sound Mode | Standard/Music/Speech/Stadium/User | ||
| Smart Features | my Home Screen | Y (3.0) | |
| Voice Assistant | Voice Assistant | — | |
| Voice Guidance | Y | ||
| EPG | Y | ||
| On Screen Display Menu Languages | English | ||
| Twin HD Tuner | — | ||
| FreeviewPlay | Y w/ Quick look guide | ||
| Freesat | — | ||
| Unique Processing Engine | — | ||
| Wireless LAN Built-in | Y | ||
| Panasonic Media Center (App) | — | ||
| Panasonic TV Remote Apps | Panasonic TV Remote Apps | Y | |
| Swipe & Share | Y | ||
| Smart Calibration | — | ||
| Internet Apps | Web Browser*3 | Y | |
| Easy Mirroring | Y | ||
| DLNA*4 | Y (DTCP-IP/DMP/DMR/DMS) | ||
| Bluetooth*5 | — | ||
| IP Home Control (Crestron/Control4) | Y | ||
| Media Player | Media Player | Y (2.0)*12 | |
| Support Format | AVI/HEVC/MKV/WMV/MP4/M4v/FLV/3GPP/VRO/VOB/TS/PS, MP3/AAC/WMA Pro/FLAC/Apple Lossless/WAV, JPEG | ||
| Teletext Reception | 1000P | ||
| USB-HDD Recording (w/ Rewind live TV)*6 | Y | ||
| Multi Window | PAT | ||
| HDAVI Control | Y | ||
| Energy Data | Suppliers Trademark | Panasonic | |
| Model ID | TX-24FS500B | ||
| Energy Efficiency Class | B | ||
| Visible Screen Size (diagonal) | 60 cm / 24 inches | ||
| On mode Average Power Consumption*7 | 32W | ||
| Annual Energy Consumption*8 | 45kWh/Year | ||
| Standby Power Consumption | 0.5 W | ||
| Off mode Power Consumption | 0.3W | ||
| Screen Resolution | 1,366 (W) x 768 (H) | ||
| Power Supply | AC 220 - 240 V, 50/60 Hz | ||
| Rated Power Consumption | 43 W | ||
| Ambient Sensor (CATS) | Y | ||
| Design | Design Concept | — | |
| Terminal | Digital Tuner Reception | DVB-T/T2 | |
| Analogue Tuner | Y | ||
| HDMI | HDMI (4K 60/50p with HDCP2.2) | — | |
| HDMI*9 | 2 (rear) | ||
| Support Feature | Audio Return Channel (Input 2) | ||
| USB | 2 (2 side; USB 2.0 x 2) | ||
| LAN Port | 1 | ||
| CI (Common Interface) | 1 (CI Plus, Version 1.3) | ||
| SD Card | — | ||
| Scart Connector | — | ||
| Component Video Input shared with Composite | RCA phono type x 1 (rear) | ||
| Digital Audio Output (Optical) | 1 (rear) | ||
| Headphone Output | 1 (side) | ||
| GENERAL | Included Accessory*10 | TV Remote | |
| Dimensions (W x H x D) (w/o stand) | 562 x 344 x 62 mm | ||
| Dimensions (W x H x D) (with stand)*11 | 562 x 409 x 180 mm | ||
| Weight (w/o stand) | 4.0 kg | ||
| Weight (with stand) | 5.0 kg | ||
| VESA Compatible | Y | ||
| VESA Dimension | 100 x 100 mm | ||
| Outer Boxed Unit (W x H x D) | 753 x 410 x 133 mm | ||
| Total Boxed Weight | 7.0 kg | ||
| NOTE | *1 Ultra HD PremiumTM logo is a trademark of the UHD Alliance, Inc. | ||
| NOTE | *2 THX and the THX logo are trademarks of THX Ltd. which are registered in some jurisdictions. The THX 3D logo is a trademark of THX Ltd. All rights reserved. | ||
| NOTE | *3 The Web Browser cannot display some web pages correctly. And viewable contents by the Web Browser are subject to the following conditions; | ||
| NOTE | - viewable contents may vary depend on models, | ||
| NOTE | - viewable contents may differ from those for PC, | ||
| NOTE | - viewable contents may be limited. | ||
| NOTE | *4 DLNA, the DLNA Logo and DLNA CERTIFIED are trademarks, service marks, or certification marks of the Digital Living Network Alliance. | ||
| NOTE | *5 HID (Human Interface Device Profile) compliant keyboards are available. A2DP (Advanced Audio Distribution Profile) compliant audio devices are available. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Panasonic Corporation is under license. | ||
| NOTE | *6 This feature requires a USB hard drive or flash drive with a capacity of at least 160 GB. | ||
| NOTE | *7 Based on IEC 62087 Ed.2 measurement method. | ||
| NOTE | *8 Energy consumption XYZ kWh per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used. | ||
| NOTE | *9 The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing, LLC in the United States and other countries. | ||
| NOTE | *10 Not all the accessories are listed here. | ||
| NOTE | *11 Dimension with recommended pedestal style. | ||
| NOTE | *12 To playback HDR, a HDR source is required (H.264 or H.265(ST2084 or HLG format)). | ||
| NOTE | *13 All models: Supporting HDR does not increase the peak brightness capabilities of the TV panel. | ||
| NOTE | Full HD & HD models: The ability to send a non 4K HDR signal via HDMI depends fully on the playback device. The majority of 4K Blu-ray discs require HDCP2.2 on TV to play back HDR, whereas the HDMI input on this TV support only HDCP1.4; accordingly not all HDR contents are guaranteed to be enjoyed on the TV. | ||
| NOTE | *14 Internet apps are provided by their respective service providers, and may be changed, interrupted, or discontinued at any time. Panasonic assumes no responsibility and makes no warranty for the availability or the continuity of the services. | ||
| NOTE | *15 When a Bluetooth device is connected to the TV, it is possible that the Bluetooth audio output may not be synchronized (i.e. be delayed) with relation to the images on the screen. This is not a defect of the TV or the device. The delay time will differ depending on the device. | ||
- آدرس سایت : WWW.IRANPANASONIC.IR
- تلفن : 77615100
تلویزیون خانگی پاناسونیکTX-32FS500B
Display
ایران پاناسونیک
| Panel | LED LCD | ||
|---|---|---|---|
| Bright Panel | — | ||
| Screen Resolution | 1,366 (W) x 768 (H) | ||
| Panel Drive | 600 Hz BMR | ||
| Picture Mode | Dynamic/Normal/Cinema/True Cinema/Custom/Sport/Game | ||
| Ultra HD Premium*1 | — | ||
| HDR Brightness Enhancer (auto/manual) | Y | ||
| Contrast | High Contrast | ||
| Colour Space | — | ||
| HCX Processor | — | ||
| Local Dimming | — | ||
| Adaptive Backlight Dimming | Adaptive Backlight Dimming | ||
| THX Certified Display*2 | — | ||
| isf Mode | — | ||
| Sound Quality | Surround | Cinema Suround | |
| Speaker Output | 20 W (10 W x 2) | ||
| Sound Mode | Standard/Music/Speech/Stadium/User | ||
| Smart Features | my Home Screen | Y (3.0) | |
| Voice Assistant | Voice Assistant | — | |
| Voice Guidance | Y | ||
| EPG | Y | ||
| On Screen Display Menu Languages | English | ||
| Twin HD Tuner | — | ||
| FreeviewPlay | Y w/ Quick look guide | ||
| Freesat | — | ||
| Unique Processing Engine | — | ||
| Wireless LAN Built-in | Y | ||
| Panasonic Media Center (App) | — | ||
| Panasonic TV Remote Apps | Panasonic TV Remote Apps | Y | |
| Swipe & Share | Y | ||
| Smart Calibration | — | ||
| Internet Apps | Web Browser*3 | Y | |
| Easy Mirroring | Y | ||
| DLNA*4 | Y (DTCP-IP/DMP/DMR/DMS) | ||
| Bluetooth*5 | — | ||
| IP Home Control (Crestron/Control4) | Y | ||
| Media Player | Media Player | Y (2.0)*12 | |
| Support Format | AVI/HEVC/MKV/WMV/MP4/M4v/FLV/3GPP/VRO/VOB/TS/PS, MP3/AAC/WMA Pro/FLAC/Apple Lossless/WAV, JPEG | ||
| Teletext Reception | 1000P | ||
| USB-HDD Recording (w/ Rewind live TV)*6 | Y | ||
| Multi Window | PAT | ||
| HDAVI Control | Y | ||
| Energy Data | Suppliers Trademark | Panasonic | |
| Model ID | TX-32FS500B | ||
| Energy Efficiency Class | A | ||
| Visible Screen Size (diagonal) | 80 cm / 32 inches | ||
| On mode Average Power Consumption*7 | 39W | ||
| Annual Energy Consumption*8 | 55kWh/Year | ||
| Standby Power Consumption | 0.5 W | ||
| Off mode Power Consumption | 0.3W | ||
| Screen Resolution | 1,366 (W) x 768 (H) | ||
| Power Supply | AC 220 - 240 V, 50/60 Hz | ||
| Rated Power Consumption | 58 W | ||
| Ambient Sensor (CATS) | Y | ||
| Design | Design Concept | — | |
| Terminal | Digital Tuner Reception | DVB-T/T2 | |
| Analogue Tuner | Y | ||
| HDMI | HDMI (4K 60/50p with HDCP2.2) | — | |
| HDMI*9 | 2 (rear) | ||
| Support Feature | Audio Return Channel (Input 2) | ||
| USB | 2 (2 side; USB 2.0 x 2) | ||
| LAN Port | 1 | ||
| CI (Common Interface) | 1 (CI Plus, Version 1.3) | ||
| SD Card | — | ||
| Scart Connector | — | ||
| Component Video Input shared with Composite | RCA phono type x 1 (rear) | ||
| Digital Audio Output (Optical) | 1 (rear) | ||
| Headphone Output | 1 (side) | ||
| GENERAL | Included Accessory*10 | TV Remote | |
| Dimensions (W x H x D) (w/o stand) | 733 x 437 x 71 mm | ||
| Dimensions (W x H x D) (with stand)*11 | 733 x 474 x 148 mm | ||
| Weight (w/o stand) | 6.0 kg | ||
| Weight (with stand) | 6.5 kg | ||
| VESA Compatible | Y | ||
| VESA Dimension | 200 x 200 mm | ||
| Outer Boxed Unit (W x H x D) | 962 x 520 x 121 mm | ||
| Total Boxed Weight | 9.0 kg | ||
| NOTE | *1 Ultra HD PremiumTM logo is a trademark of the UHD Alliance, Inc. | ||
| NOTE | *2 THX and the THX logo are trademarks of THX Ltd. which are registered in some jurisdictions. The THX 3D logo is a trademark of THX Ltd. All rights reserved. | ||
| NOTE | *3 The Web Browser cannot display some web pages correctly. And viewable contents by the Web Browser are subject to the following conditions; | ||
| NOTE | - viewable contents may vary depend on models, | ||
| NOTE | - viewable contents may differ from those for PC, | ||
| NOTE | - viewable contents may be limited. | ||
| NOTE | *4 DLNA, the DLNA Logo and DLNA CERTIFIED are trademarks, service marks, or certification marks of the Digital Living Network Alliance. | ||
| NOTE | *5 HID (Human Interface Device Profile) compliant keyboards are available. A2DP (Advanced Audio Distribution Profile) compliant audio devices are available. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Panasonic Corporation is under license. | ||
| NOTE | *6 This feature requires a USB hard drive or flash drive with a capacity of at least 160 GB. | ||
| NOTE | *7 Based on IEC 62087 Ed.2 measurement method. | ||
| NOTE | *8 Energy consumption XYZ kWh per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used. | ||
| NOTE | *9 The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing, LLC in the United States and other countries. | ||
| NOTE | *10 Not all the accessories are listed here. | ||
| NOTE | *11 Dimension with recommended pedestal style. | ||
| NOTE | *12 To playback HDR, a HDR source is required (H.264 or H.265(ST2084 or HLG format)). | ||
| NOTE | *13 All models: Supporting HDR does not increase the peak brightness capabilities of the TV panel. | ||
| NOTE | Full HD & HD models: The ability to send a non 4K HDR signal via HDMI depends fully on the playback device. The majority of 4K Blu-ray discs require HDCP2.2 on TV to play back HDR, whereas the HDMI input on this TV support only HDCP1.4; accordingly not all HDR contents are guaranteed to be enjoyed on the TV. | ||
| NOTE | *14 Internet apps are provided by their respective service providers, and may be changed, interrupted, or discontinued at any time. Panasonic assumes no responsibility and makes no warranty for the availability or the continuity of the services. | ||
| NOTE | *15 When a Bluetooth device is connected to the TV, it is possible that the Bluetooth audio output may not be synchronized (i.e. be delayed) with relation to the images on the screen. This is not a defect of the TV or the device. The delay time will differ depending on the device. | ||
- آدرس سایت : WWW.IRANPANASONIC.IR
- تلفن : 77615100
تلویزیون خانگی پاناسونیکTX-32FS503B
Display
ایران پاناسونیک
| Panel | LED LCD | ||
|---|---|---|---|
| Bright Panel | — | ||
| Screen Resolution | 1,366 (W) x 768 (H) | ||
| Panel Drive | 800 Hz BMR | ||
| Picture Mode | Dynamic/Normal/Cinema/True Cinema/Custom/Sport/Game | ||
| Ultra HD Premium*1 | — | ||
| HDR Brightness Enhancer (auto/manual) | Y | ||
| Contrast | High Contrast | ||
| Colour Space | — | ||
| HCX Processor | — | ||
| Local Dimming | — | ||
| Adaptive Backlight Dimming | Adaptive Backlight Dimming | ||
| THX Certified Display*2 | — | ||
| isf Mode | — | ||
| Sound Quality | Surround | Cinema Suround | |
| Speaker Output | 20 W (10 W x 2) | ||
| Sound Mode | Standard/Music/Speech/Stadium/User | ||
| Smart Features | my Home Screen | Y (3.0) | |
| Voice Assistant | Voice Assistant | — | |
| Voice Guidance | Y | ||
| EPG | Y | ||
| On Screen Display Menu Languages | English | ||
| Twin HD Tuner | — | ||
| FreeviewPlay | Y w/ Quick look guide | ||
| Freesat | Y | ||
| Unique Processing Engine | — | ||
| Wireless LAN Built-in | Y | ||
| Panasonic Media Center (App) | — | ||
| Panasonic TV Remote Apps | Panasonic TV Remote Apps | Y | |
| Swipe & Share | Y | ||
| Smart Calibration | — | ||
| Internet Apps | Web Browser*3 | Y | |
| Easy Mirroring | Y | ||
| DLNA*4 | Y (DTCP-IP/DMP/DMR/DMS) | ||
| Bluetooth*5 | — | ||
| IP Home Control (Crestron/Control4) | Y | ||
| Media Player | Media Player | Y (2.0)*12 | |
| Support Format | AVI/HEVC/MKV/WMV/MP4/M4v/FLV/3GPP/VRO/VOB/TS/PS, MP3/AAC/WMA Pro/FLAC/Apple Lossless/WAV, JPEG | ||
| Teletext Reception | 1000P | ||
| USB-HDD Recording (w/ Rewind live TV)*6 | Y | ||
| Multi Window | PAT | ||
| HDAVI Control | Y | ||
| Energy Data | Suppliers Trademark | Panasonic | |
| Model ID | TX-32FS503B | ||
| Energy Efficiency Class | A | ||
| Visible Screen Size (diagonal) | 80 cm / 32 inches | ||
| On mode Average Power Consumption*7 | 39W | ||
| Annual Energy Consumption*8 | 55kWh/Year | ||
| Standby Power Consumption | 0.5 W | ||
| Off mode Power Consumption | 0.3W | ||
| Screen Resolution | 1,366 (W) x 768 (H) | ||
| Power Supply | AC 220 - 240 V, 50/60 Hz | ||
| Rated Power Consumption | 69 W | ||
| Ambient Sensor (CATS) | Y | ||
| Design | Design Concept | — | |
| Terminal | Digital Tuner Reception | DVB-T/T2/DVB-S2 | |
| Analogue Tuner | Y | ||
| HDMI | HDMI (4K 60/50p with HDCP2.2) | — | |
| HDMI*9 | 2 (rear) | ||
| Support Feature | Audio Return Channel (Input 2) | ||
| USB | 2 (2 side; USB 2.0 x 2) | ||
| LAN Port | 1 | ||
| CI (Common Interface) | 1 (CI Plus, Version 1.3) | ||
| SD Card | — | ||
| Scart Connector | — | ||
| Component Video Input shared with Composite | RCA phono type x 1 (rear) | ||
| Digital Audio Output (Optical) | 1 (rear) | ||
| Headphone Output | 1 (side) | ||
| GENERAL | Included Accessory*10 | TV Remote | |
| Dimensions (W x H x D) (w/o stand) | 733 x 437 x 71 mm | ||
| Dimensions (W x H x D) (with stand)*11 | 733 x 474 x 148 mm | ||
| Weight (w/o stand) | 6.0 kg | ||
| Weight (with stand) | 6.5 kg | ||
| VESA Compatible | Y | ||
| VESA Dimension | 200 x 200 mm | ||
| Outer Boxed Unit (W x H x D) | 962 x 520 x 121 mm | ||
| Total Boxed Weight | 9.0 kg | ||
| NOTE | *1 Ultra HD PremiumTM logo is a trademark of the UHD Alliance, Inc. | ||
| NOTE | *2 THX and the THX logo are trademarks of THX Ltd. which are registered in some jurisdictions. The THX 3D logo is a trademark of THX Ltd. All rights reserved. | ||
| NOTE | *3 The Web Browser cannot display some web pages correctly. And viewable contents by the Web Browser are subject to the following conditions; | ||
| NOTE | - viewable contents may vary depend on models, | ||
| NOTE | - viewable contents may differ from those for PC, | ||
| NOTE | - viewable contents may be limited. | ||
| NOTE | *4 DLNA, the DLNA Logo and DLNA CERTIFIED are trademarks, service marks, or certification marks of the Digital Living Network Alliance. | ||
| NOTE | *5 HID (Human Interface Device Profile) compliant keyboards are available. A2DP (Advanced Audio Distribution Profile) compliant audio devices are available. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Panasonic Corporation is under license. | ||
| NOTE | *6 This feature requires a USB hard drive or flash drive with a capacity of at least 160 GB. | ||
| NOTE | *7 Based on IEC 62087 Ed.2 measurement method. | ||
| NOTE | *8 Energy consumption XYZ kWh per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used. | ||
| NOTE | *9 The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing, LLC in the United States and other countries. | ||
| NOTE | *10 Not all the accessories are listed here. | ||
| NOTE | *11 Dimension with recommended pedestal style. | ||
| NOTE | *12 To playback HDR, a HDR source is required (H.264 or H.265(ST2084 or HLG format)). | ||
| NOTE | *13 All models: Supporting HDR does not increase the peak brightness capabilities of the TV panel. | ||
| NOTE | Full HD & HD models: The ability to send a non 4K HDR signal via HDMI depends fully on the playback device. The majority of 4K Blu-ray discs require HDCP2.2 on TV to play back HDR, whereas the HDMI input on this TV support only HDCP1.4; accordingly not all HDR contents are guaranteed to be enjoyed on the TV. | ||
| NOTE | *14 Internet apps are provided by their respective service providers, and may be changed, interrupted, or discontinued at any time. Panasonic assumes no responsibility and makes no warranty for the availability or the continuity of the services. | ||
| NOTE | *15 When a Bluetooth device is connected to the TV, it is possible that the Bluetooth audio output may not be synchronized (i.e. be delayed) with relation to the images on the screen. This is not a defect of the TV or the device. The delay time will differ depending on the device. | ||
- آدرس سایت : WWW.IRANPANASONIC.IR
- تلفن : 77615100
تلویزیون خانگی پاناسونیکTX-40FS503B
Display
ایران پاناسونیک
| Panel | LED LCD | ||
|---|---|---|---|
| Bright Panel | — | ||
| Screen Resolution | 1,920 (W) x 1,080 (H) | ||
| Panel Drive | 800 Hz BMR | ||
| Picture Mode | Dynamic/Normal/Cinema/True Cinema/Custom/Sport/Game | ||
| Ultra HD Premium*1 | — | ||
| HDR Brightness Enhancer (auto/manual) | Y | ||
| Contrast | High Contrast | ||
| Colour Space | — | ||
| HCX Processor | — | ||
| Local Dimming | — | ||
| Adaptive Backlight Dimming | Adaptive Backlight Dimming | ||
| THX Certified Display*2 | — | ||
| isf Mode | — | ||
| Sound Quality | Surround | Cinema Suround | |
| Speaker Output | 20 W (10 W x 2) | ||
| Sound Mode | Standard/Music/Speech/Stadium/User | ||
| Smart Features | my Home Screen | Y (3.0) | |
| Voice Assistant | Voice Assistant | — | |
| Voice Guidance | Y | ||
| EPG | Y | ||
| On Screen Display Menu Languages | English | ||
| Twin HD Tuner | — | ||
| FreeviewPlay | Y w/ Quick look guide | ||
| Freesat | Y | ||
| Unique Processing Engine | — | ||
| Wireless LAN Built-in | Y | ||
| Panasonic Media Center (App) | — | ||
| Panasonic TV Remote Apps | Panasonic TV Remote Apps | Y | |
| Swipe & Share | Y | ||
| Smart Calibration | — | ||
| Internet Apps | Web Browser*3 | Y | |
| Easy Mirroring | Y | ||
| DLNA*4 | Y (DTCP-IP/DMP/DMR/DMS) | ||
| Bluetooth*5 | — | ||
| IP Home Control (Crestron/Control4) | Y | ||
| Media Player | Media Player | Y (2.0)*12 | |
| Support Format | AVI/HEVC/MKV/WMV/MP4/M4v/FLV/3GPP/VRO/VOB/TS/PS, MP3/AAC/WMA Pro/FLAC/Apple Lossless/WAV, JPEG | ||
| Teletext Reception | 1000P | ||
| USB-HDD Recording (w/ Rewind live TV)*6 | Y | ||
| Multi Window | PAT | ||
| HDAVI Control | Y | ||
| Energy Data | Suppliers Trademark | Panasonic | |
| Model ID | TX-40FS503B | ||
| Energy Efficiency Class | A+ | ||
| Visible Screen Size (diagonal) | 100 cm / 40 inches | ||
| On mode Average Power Consumption*7 | 46W | ||
| Annual Energy Consumption*8 | 64kWh/Year | ||
| Standby Power Consumption | 0.5 W | ||
| Off mode Power Consumption | 0.3W | ||
| Screen Resolution | 1,920 (W) x 1,080 (H) | ||
| Power Supply | AC 220 - 240 V, 50/60 Hz | ||
| Rated Power Consumption | 77 W | ||
| Ambient Sensor (CATS) | Y | ||
| Design | Design Concept | — | |
| Terminal | Digital Tuner Reception | DVB-T/T2/DVB-S2 | |
| Analogue Tuner | Y | ||
| HDMI | HDMI (4K 60/50p with HDCP2.2) | — | |
| HDMI*9 | 2 (rear) | ||
| Support Feature | Audio Return Channel (Input 2) | ||
| USB | 2 (2 side; USB 2.0 x 2) | ||
| LAN Port | 1 | ||
| CI (Common Interface) | 1 (CI Plus, Version 1.3) | ||
| SD Card | — | ||
| Scart Connector | — | ||
| Component Video Input shared with Composite | RCA phono type x 1 (rear) | ||
| Digital Audio Output (Optical) | 1 (rear) | ||
| Headphone Output | 1 (side) | ||
| GENERAL | Included Accessory*10 | TV Remote | |
| Dimensions (W x H x D) (w/o stand) | 902 x 521 x 90 mm | ||
| Dimensions (W x H x D) (with stand)*11 | 902 x 561 x 202 mm | ||
| Weight (w/o stand) | 8.0 kg | ||
| Weight (with stand) | 9.5 kg | ||
| VESA Compatible | Y | ||
| VESA Dimension | 200 x 200 mm | ||
| Outer Boxed Unit (W x H x D) | 983 x 649 x 154 mm | ||
| Total Boxed Weight | 12.0 kg | ||
| NOTE | *1 Ultra HD PremiumTM logo is a trademark of the UHD Alliance, Inc. | ||
| NOTE | *2 THX and the THX logo are trademarks of THX Ltd. which are registered in some jurisdictions. The THX 3D logo is a trademark of THX Ltd. All rights reserved. | ||
| NOTE | *3 The Web Browser cannot display some web pages correctly. And viewable contents by the Web Browser are subject to the following conditions; | ||
| NOTE | - viewable contents may vary depend on models, | ||
| NOTE | - viewable contents may differ from those for PC, | ||
| NOTE | - viewable contents may be limited. | ||
| NOTE | *4 DLNA, the DLNA Logo and DLNA CERTIFIED are trademarks, service marks, or certification marks of the Digital Living Network Alliance. | ||
| NOTE | *5 HID (Human Interface Device Profile) compliant keyboards are available. A2DP (Advanced Audio Distribution Profile) compliant audio devices are available. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Panasonic Corporation is under license. | ||
| NOTE | *6 This feature requires a USB hard drive or flash drive with a capacity of at least 160 GB. | ||
| NOTE | *7 Based on IEC 62087 Ed.2 measurement method. | ||
| NOTE | *8 Energy consumption XYZ kWh per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used. | ||
| NOTE | *9 The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing, LLC in the United States and other countries. | ||
| NOTE | *10 Not all the accessories are listed here. | ||
| NOTE | *11 Dimension with recommended pedestal style. | ||
| NOTE | *12 To playback HDR, a HDR source is required (H.264 or H.265(ST2084 or HLG format)). | ||
| NOTE | *13 All models: Supporting HDR does not increase the peak brightness capabilities of the TV panel. | ||
| NOTE | Full HD & HD models: The ability to send a non 4K HDR signal via HDMI depends fully on the playback device. The majority of 4K Blu-ray discs require HDCP2.2 on TV to play back HDR, whereas the HDMI input on this TV support only HDCP1.4; accordingly not all HDR contents are guaranteed to be enjoyed on the TV. | ||
| NOTE | *14 Internet apps are provided by their respective service providers, and may be changed, interrupted, or discontinued at any time. Panasonic assumes no responsibility and makes no warranty for the availability or the continuity of the services. | ||
| NOTE | *15 When a Bluetooth device is connected to the TV, it is possible that the Bluetooth audio output may not be synchronized (i.e. be delayed) with relation to the images on the screen. This is not a defect of the TV or the device. The delay time will differ depending on the device. | ||
- آدرس سایت : WWW.IRANPANASONIC.IR
- تلفن : 77615100
تلویزیون خانگی پاناسونیکTX-24G302B
MAIN FEATURES
ایران پاناسونیک
| FULL HD | HD | |
|---|---|---|
| ULTRA HD | - | |
| 100HZ (FLICKER FREE) | - | |
| Real Motion Rate | 200Hz | |
| LED DIRECT BACK LIGHT | - | |
| LED EDGE BACK LIGHT | Y | |
| PANEL BRIGHTNESS | 200 | |
| DVB | DVB-T2 | |
| REMOTE CONTROLLER CODE | RCA39127/M | |
| HEVC (H.265) | Y | |
| 3DTV | - | |
| 3DTV TYPE | - | |
| 2D - 3D CONVERSION | - | |
| MEDIA PLAYER | Y | |
| PVR READY (USB RECORD) | - | |
| HDMI (1.1/1.2/1.3/1.4/2.0) | 1.4 | |
| GUI 2019 (QUI 2) | Y | |
| SCREEN FORMAT | VISIBLE SCREEN SIZE | 60cm |
| SCREEN FORMAT | 16:9 | |
| RECEPTION & TUNING SYSTEMS | TUNER VHF/UHF/CABLE | Y |
| APS / ATS (AUTO SEARCH) | Y | |
| PROGRAM STORAGE CAPACITY (ANALOG) | 200 | |
| PAL Secam B/G D/K I/I' | Y | |
| DUAL TUNER | - | |
| SOUND | GER(D) + NICAM STEREO | Y |
| EQUALIZER (5 BAND) | 5 band | |
| CARRIER MUTE | Y | |
| DOLBY DIGITAL PLUS(DD+) | - | |
| DDCO | - | |
| MS11 | Y | |
| DTS TRUSURROUND | - | |
| DTS 2.0+ DIGITAL OUT | - | |
| AUDIO OUTPUT POWER(RMS) | 2x2.5W | |
| CONNECTORS | RF: TV/CATV 75 OHMS COAXIAL | Y |
| SCART | 1 | |
| SVHS VIA SCART | Y | |
| RGB VIA SCART2 | - | |
| COMPOSITE VIDEO/AUDIO IN | Y | |
| COMPOSITE VIDEO OUT | - | |
| AUDIO LINE OUT | - | |
| AUDIO LINE OUT VIA HEADPHONE | Y | |
| S-VHS IN(S-VIDEO 4-PIN DIN) | - | |
| YPBPR(COMPONENT) IN | - | |
| YPBPR IN VIA VGA | Y | |
| VGA (PC IN: D-SUB15) | Y | |
| PC AUDIO IN | VIA SIDE AV | |
| HDMI 1 (SIDE) | Y | |
| HDMI 2 | - | |
| HDMI 3 | - | |
| HDMI 4 | - | |
| HDCP (1.2/ 2.2) | 1.2 | |
| DIGITAL AUDIO OUTPUT(COAX) | Y | |
| DIGITAL AUDIO OUTPUT(OPTIC) | - | |
| HEADPHONE OUT(MAIN VOLUME CONTROL) | Y | |
| HEADPHONE OUT(HEADPHONE VOL.CONTROL SUPPORT DUAL CHANNELS) | - | |
| SUBWOOFER LINE OUT(PASSIVE) | - | |
| INTERNAL SUBWOOFER | - | |
| SPEAKER BOX | - | |
| USB1 (2.0) | Y | |
| USB2 (2.0) | - | |
| USB3 (2.0) | - | |
| USB4 (2.0) | - | |
| DIGITAL SW UPDATE | USB | |
| PICTURE | ZOOM MODES(ASPECT RATIO) | Y |
| COMB FILTER (2D / 3D) | 3D | |
| CTI/LTI | Y | |
| DIGITAL NOISE REDUCTION | Y | |
| DYNAMIC CONTRAST | Y | |
| PROGRESSIVE SCAN | Y | |
| ME/MC (MOTION ESTIMATION – MOTION COMPANSATION) | - | |
| TEXT | FAST TEXT | Y |
| NUMBER OF TELETEXT PAGES | 1000P | |
| CONNECTIVITY FEATURES | HBBTV | - |
| WIFI (VIA USB DONGLE) | - | |
| FLASH LITE SUPPORT (BY YOUTUBE) | - | |
| HTML5 SUPPORT (BY YOUTUBE LB4 2014) | - | |
| 4K SUPPORT (BY YOUTUBE VP9 2015) | - | |
| DLNA 1.5 | - | |
| DLNA 2.1 | - | |
| BLUETOOTH | - | |
| PORTAL SUPPORT(Connected) | - | |
| WIFI ( INTERNAL) | - | |
| OPEN INTERNET | - | |
| BBC IPLAYER, NEWS, SPORTS, CRB | - | |
| NETFLIX | - | |
| NETFLIX 4K | - | |
| MIRACAST | - | |
| ADDITIONAL FEATURES | NTSC PLAYBACK | Y |
| SLEEP TIMER | Y | |
| HOTEL MODE (PASSIVE) | Y | |
| CHILD LOCK | Y | |
| NO IDENT TIMER | Y | |
| TOUCH KEY PAD | 3Way Switch | |
| PVR READY (USB RECORD) | - | |
| USB CLONING | Y | |
| AIR MOUSE | - | |
| FEATURE OSD | - | |
| ANIMATED FEATURE OSD | - | |
| E-IB | - | |
| DIGITAL (DVB) | PROGRAM STORAGE CAPACITY (DIGITAL T/T2/C) | 800 |
| PROGRAM STORAGE CAPACITY (DIGITAL S/S2) | 7000 | |
| MENU LANGUAGES | Albanian, Belarussian, Bulgarian, Croatian, Czech, Danish, Dutch, English, Estonian, Finnish, French, German, Greek, Hungarian, Italian, Latvian, Lithuanian, Luxembourgish, Macedonian, Montenegrin, Norwegian, Polish, Portuguese, Romanian, Serbian, Slovak, Slovenian, Spanish, Swedish, Turkish, Ukranian (+Russian for DACH) | |
| DIGITAL TELETEXT MHEG/MHP (ONLY FOR UK ID TV) | PAN EU: VBI | |
| EPG (ELECTRONIC PROGRAM GUIDE) | Y | |
| COMMON INTERFACE (PCMCIA SLOT FOR PAY CHANNELS) | Y | |
| LCN INSTALLATION (CHECK FOR COUNTRY) | Y | |
| COMMUNICATION | CEC(CONNECTED EQUIPMENT FEATURES VIA HDMI) | Y |
| OPERATION | ROCKER SWITCH - DACH | Y |
| POWER SUPPLY | 220-240V AC | |
| STAND-BY POWER | 0.5W | |
| AC/DC TV (MOBIL TV) | - | |
| POWER LED | RED-GREEN | |
| SUPPLIED EXTRAS (RELATED TO CABINET AND CONCEPT) | WALL HANGING KIT - VESA | - |
| CERTIFICATES | WEEE COMPLIANT | Y |
| ROHS COMPLIANT | Y |
- آدرس سایت : WWW.IRANPANASONIC.IR
- تلفن : 77615100
